Ecowitt HP2561 with 7" TFT Display, 7-in-1 Sensor & WiFi Weather Station

The Ecowitt HP2561 weather station consists of the 7-in-1 sensor suite and large 7" TFT full colour display with built in temperature, humidity and pressure sensors making it an advanced weather station with full WiFi internet access.

The 7-in-1 sensor suite measures wind direct and speed, temperature, humidity, solar radiation, UV level, and rain.

The 7" high resolution TFT colour screen has a friendly & well-designed interface with two selectable backgrounds (dark or light). The console displays wind speed and direction, dew point, rainfall, indoor outdoor temperature and humidity, barometric pressure, moon phase, solar radiation and UV. There is also a full colour weather forecast function and optional microSD memory card to store historical data with a 1GB card storing on average 10 years of data.

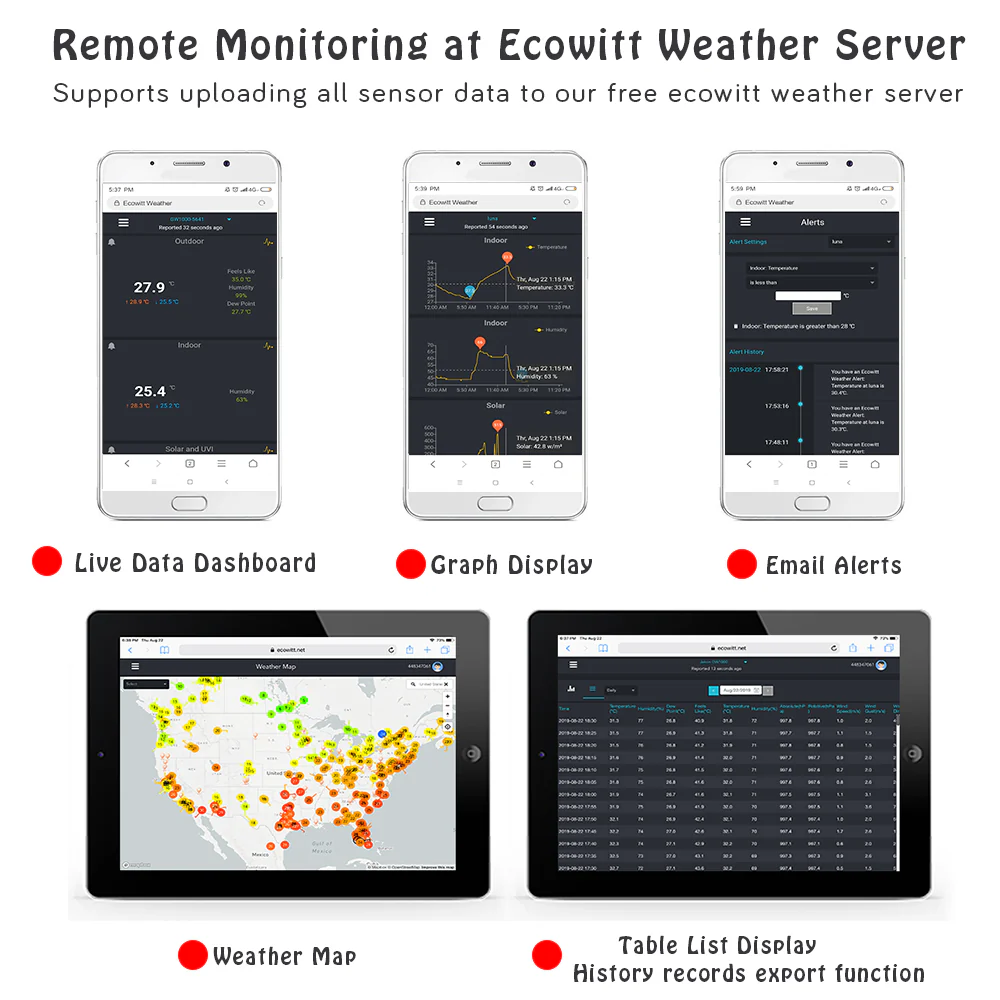

This indoor data, along with the outdoor sensor data is uploaded to the FREE Ecowitt service via WiFi and is used to calculate rainfall rate, wind chill, dew point and heat index. All of this can be viewed on an iOS, Google App, or Ecowitt weather website in a browser.

You are not just limited to weather data on the Ecowitt weather site or App, you can share your data further afield with free access to The UK MetOffice WoW service, Weather Underground, WeatherCloud and your own web server.

Unlike some other weather stations, the Ecowitt HP2561 can be expanded with a variety of sensors, click here to view the latest Ecowitt sensor matrix.

All of these are available to view in the App, or online via Ecowitt.net and in the 3rd party services that support this sensor type.



Included

The Ecowitt HP2561 includes the following items:

• HP2560 WiFi 7" colour TFT console.

• 7-in-1 sensor array

• Installation bracket for 25-50mm pole (pole not supplied as standard)
• UK power adapter
• Instruction manual via electronic delivery (100 comprehensive pages)




Technical & Manual

The HP2561 consists of:

HP2560 7" Full Colour TFT Screen

• Built in sensors for indoor
• Temperature
• Humidity
• Atmospheric pressure sensor
• Configure WiFi via console
• Configure additional sensors via console
• Publishes sensor data to Internet based weather services including
• Ecowitt weather server: ecowitt.net.
• WeatherUnderground.com
• WeatherCloud
• MetOffice WoW
• Only sensor data supported by each specific service will be uploaded.
• View historical records from your weather station with optional microSD card
• View all current sensor and historical records, and graphs on Ecowitt.net server. History records can also be exported in Excel format
• Wireless Range from external sensors: 330 feet / 100m (unobstructed)
• 868MHz UK and European frequency

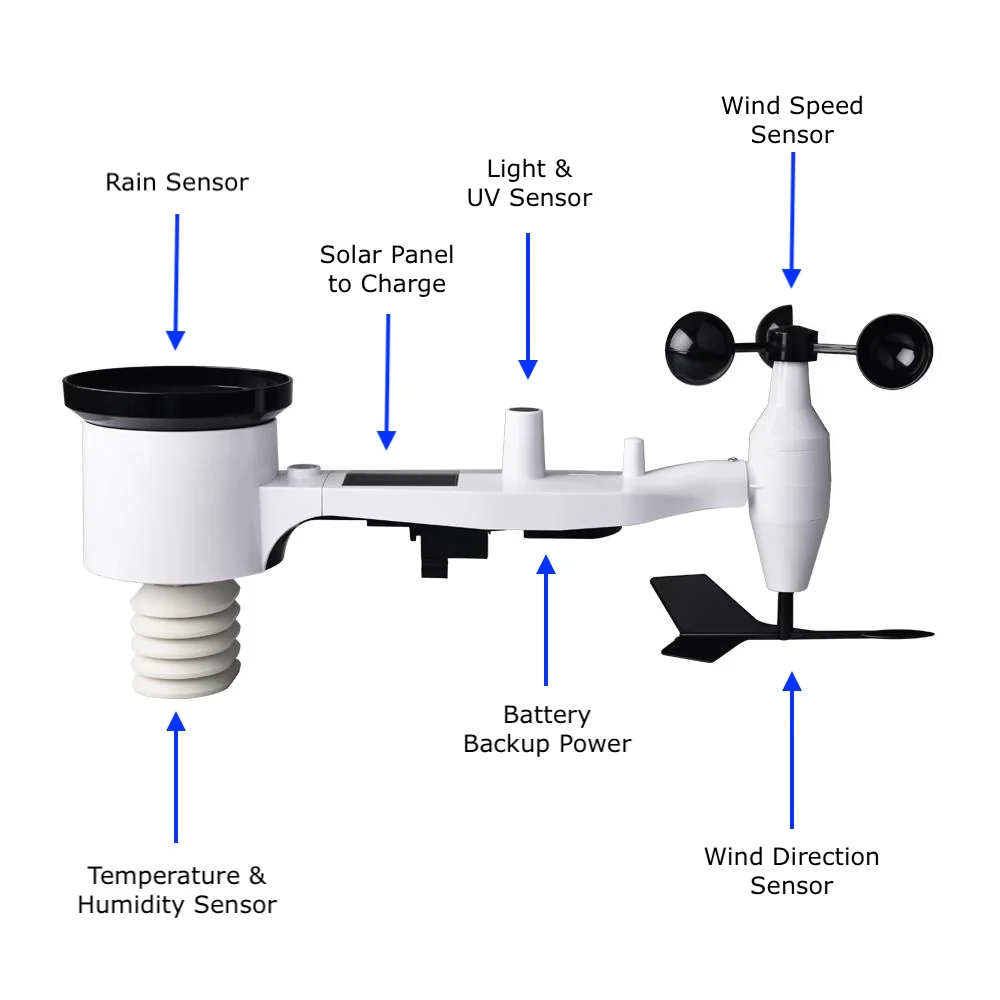

7-in-1 sensor suite

• Outdoor temperature and humidity
• Rainfall
• Wind speed, gust speed, and wind direction
• Calculated wind chill, dew point and heat index display on the WS View App
• Solar light intensity
• UV index
• Solar powered with 2 x AA battery backup
• 868MHz UK and European frequency
• Mounting bracket for 25-50mm pole (pole not supplied as standard)

A copy of the HP2560 weather station console instructions can be downloaded by clicking here.

A separate manual is provided for the WS69 7-in-1 sensor array by clicking here.



Product Warranty

2 year warranty from date of purchase from January 2025, 1 year on purchases before this date - return to supplier.

See our terms and conditions for full details of our warranty details.
