Ecowitt HP2552 with 7" TFT Display & 3 Outdoor Sensor Weather Station

The Ecowitt HP2552 weather station consists of the standard anemometer, temperature, humidity, solar radiation and UV sensors, the self emptying rain gauge and large 7" TFT full colour screen making it an advanced weather station with full internet access.

The anemometer sensor pack measures wind speed, wind direction, UV level and Solar intensity.

Two additional sensors are supplied, a rain sensor & separate temperature / humidity sensor. The rain sensor is self emptying for easy of use.

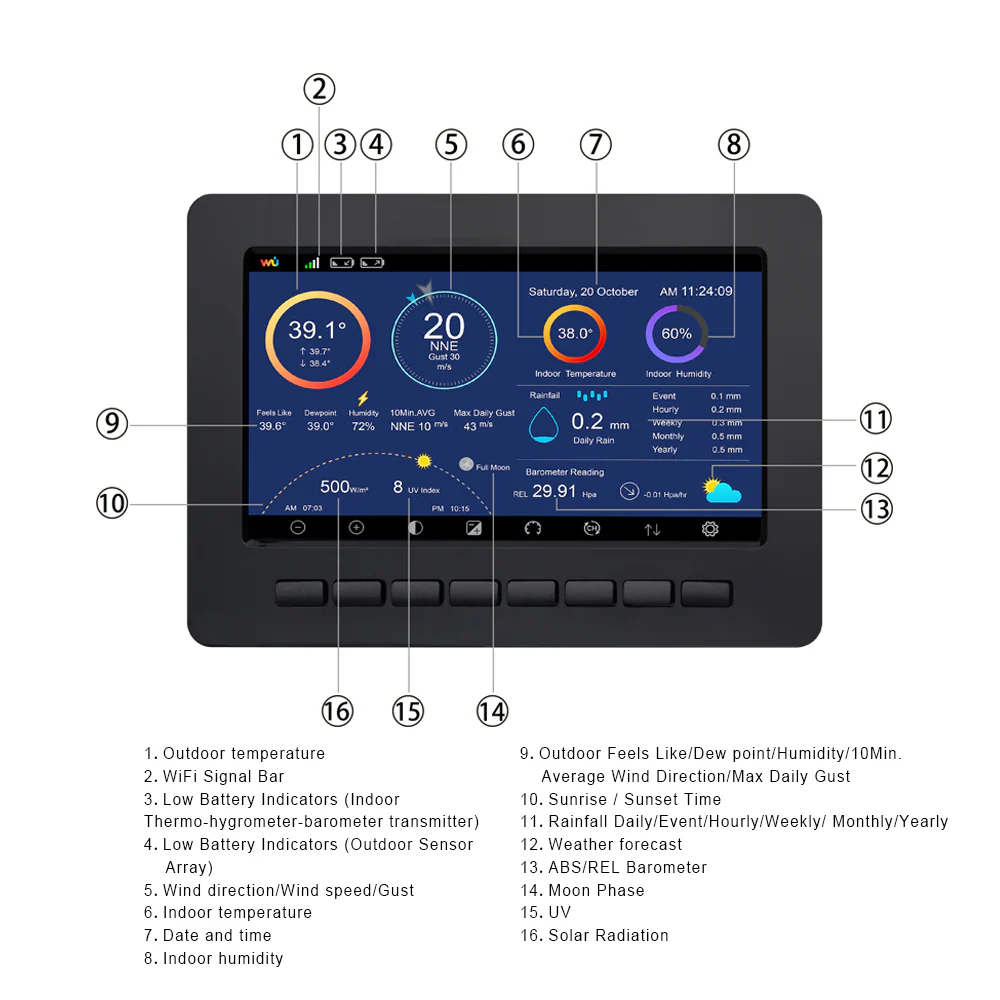

The 7" high resolution TFT colour screen has a friendly & well-designed interface with two selectable backgrounds (dark or light). The console displays wind speed and direction, dew point, rainfall, indoor outdoor temperature and humidity, barometric pressure, moon phase, solar radiation and UV. There is also a full colour weather forecast function and you can also purchase a microSD memory card to store historical data. A 1GB card will store on average 10 years of data.

This data, along with the outdoor sensor data is uploaded to the FREE Ecowitt service via WiFi and is used to calculate rainfall rate, wind chill, dew point and heat index. All of this can be viewed on an iOS, Google App, or Ecowitt weather website in a browser.

You are not just limited to weather data on the Ecowitt weather site or App, you can share your data further afield with free access to The UK MetOffice WoW service, Weather Underground, WeatherCloud and your own web server.

Unlike some other stations, the Ecowitt HP2552 can be expanded with a variety of sensors, click here to view the latest Ecowitt sensor matrix.

All of these are available to view in the App, or online via Ecowitt.net and in the 3rd party services that support this sensor type.



Included

The Ecowitt HP2552 includes the following individual items:

• HP2550 TFT display with WiFi gateway console

• WN32A (WH32) indoor temperature / humidity / barometric pressure sensor
• WN32 (WH32) outdoor temperature / humidity primary sensor
• WS68 sensor array measuring windspeed / direction / UV / light level

• WH40H Rainfall sensor for pole or post mounting

• Power supply
• Brackets for WS68 / WH40 installation on 25-50mm pole (pole not supplied as standard)
• Instruction manual via electronic delivery (100 comprehensive pages)




Technical & Manual

The HP2552 weather station consists of:

HP2550 7" Full Colour TFT Screen

• Separate WN32A indoor sensor with LCD display of
• Temperature
• Humidity
• Atmospheric pressure sensor
• Configure WiFi via console
• Configure additional sensors via console
• Publishes sensor data to Internet based weather services including
• Ecowitt weather server: ecowitt.net.
• WeatherUnderground.com
• WeatherCloud
• MetOffice WoW
• Only sensor data supported by each specific service will be uploaded.
• View historical records from your weather station with optional microSD card

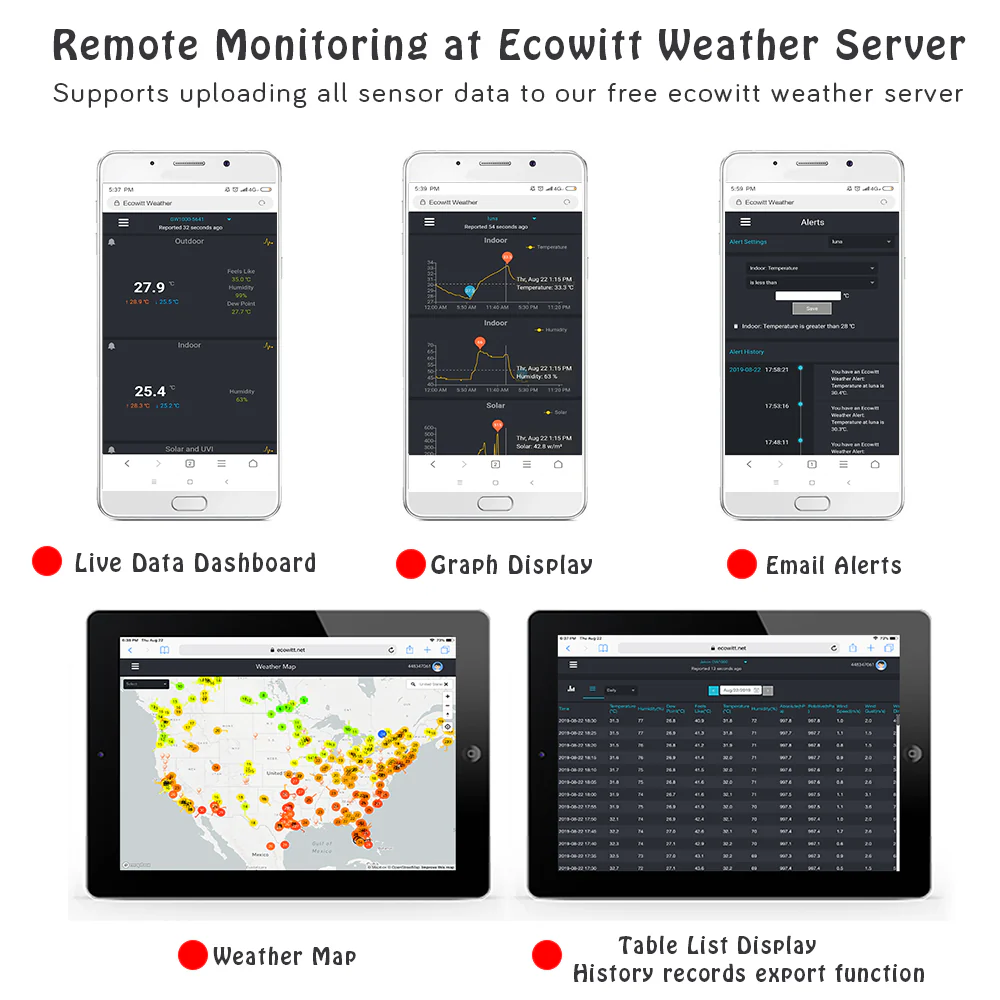

• View all current sensor and historical records, and graphs on Ecowitt.net server. History records can also be exported in Excel format
• Wireless Range from external sensors: 300 feet / 100m (in open areas)
• 868MHz UK and European frequency

Anemometer sensor suite WS68

• Wind speed, gust speed and wind direction

• Calculated wind chill, dew point and heat index display on the WS View App
• Solar light intensity
• UV index
• Solar powered with 2 x AA battery backup
• 868MHz UK and European frequency
• Mounting bracket

Outdoor temperature & humidity sensor WH32

• Outdoor temperature and humidity
• LCD Display
• Powered by AA batteries
• 868MHz UK and European frequency

Self emptying rain gauge WH40H

• Rainfall rate and totals for day, week, month, and year
• Transmission distance in open field: 100m(300 feet)
• Rainfall measuring range: 0--6000mm
• Sensor reporting interval: 49 seconds

The electronic copy of the HP2552 product instructions can be downloaded by clicking here.  Changes may be made to products after publishing, so please refer to the individual sensor manuals for the latest information.



Product Warranty

2 year warranty from date of purchase from January 2025, 1 year on purchases before this date - return to supplier. Batteries are excluded from warranties as they are classed as a consumable item.

See our terms and conditions for full details of our warranty details.
