Ecowitt HP2553H Weather Station with 7" TFT Display, 6-in-1 Sonic Wind Sensor & Rain Collector

The Ecowitt HP2553H weather station consists of 4 separate items, the ultrasonic anemometer, temperature, humidity, solar radiation and UV sensors, the self emptying rain gauge and large 7" TFT full colour screen making it an advanced weather station with full internet access.

The sonic anemometer sensor pack measures outdoor temperature, humidity, wind speed, wind direction, UV level and Solar intensity.

The separate rain sensor measures rain fall and is self emptying for easy of use and now includes the heightened funnel and bird deterrent spikes.

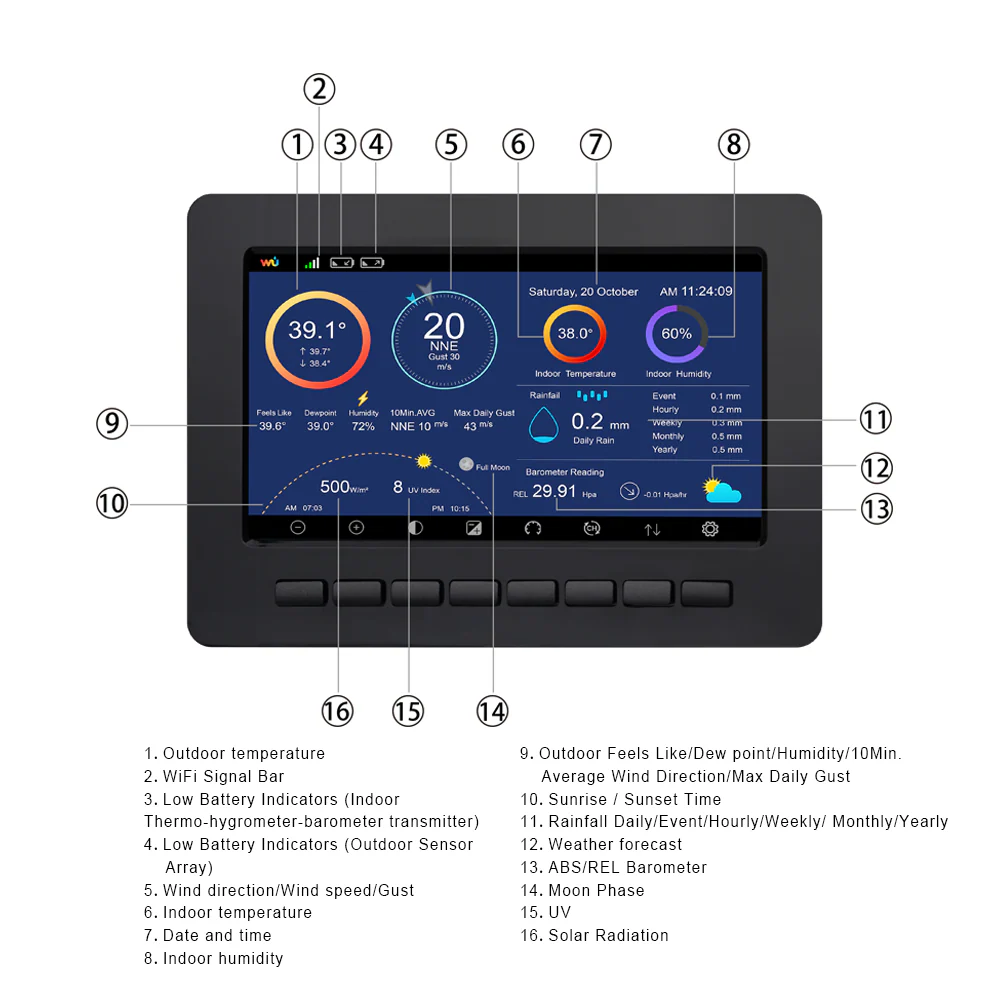

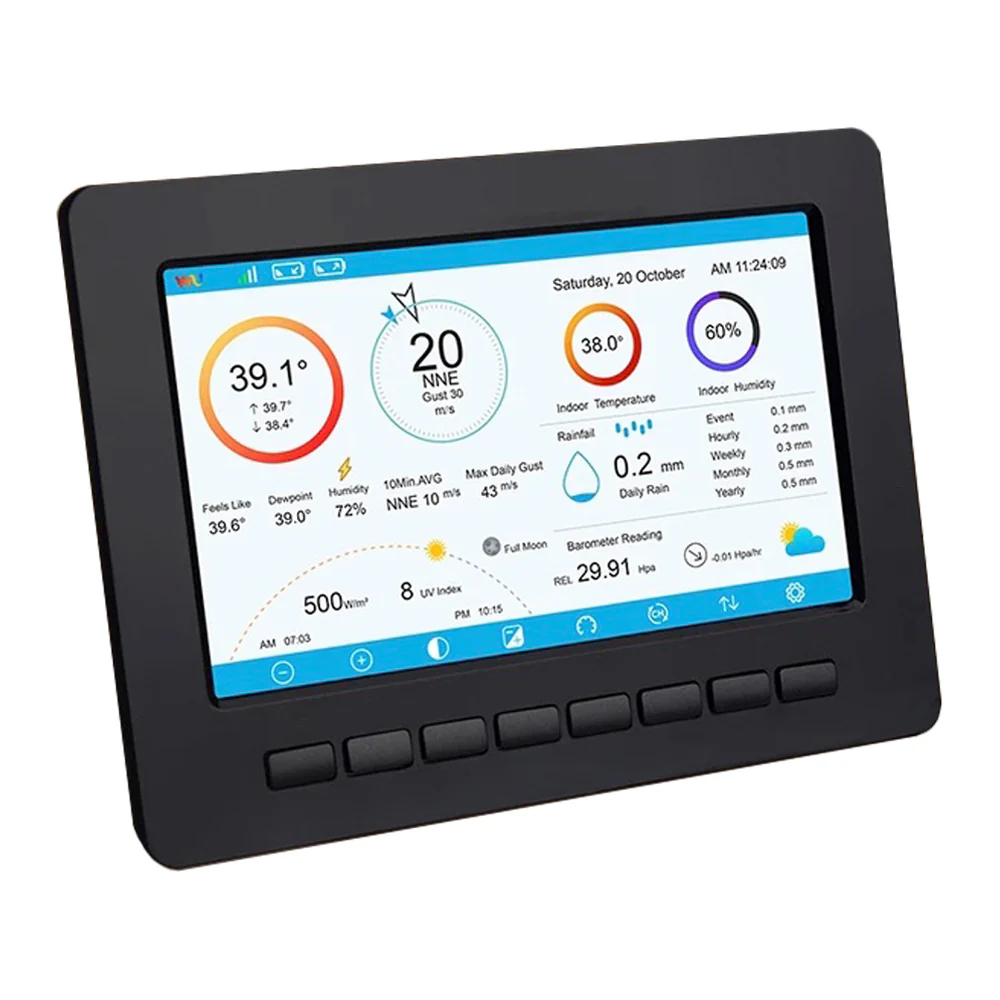

The 7" high resolution TFT colour screen has a friendly & well-designed interface with two selectable backgrounds (dark or light). The console displays wind speed and direction, dew point, rainfall, indoor outdoor temperature and humidity, barometric pressure, moon phase, solar radiation and UV. There is also a full colour weather forecast function and you can also purchase a microSD memory card to store historical data. A 1GB card will store on average 10 years of data.

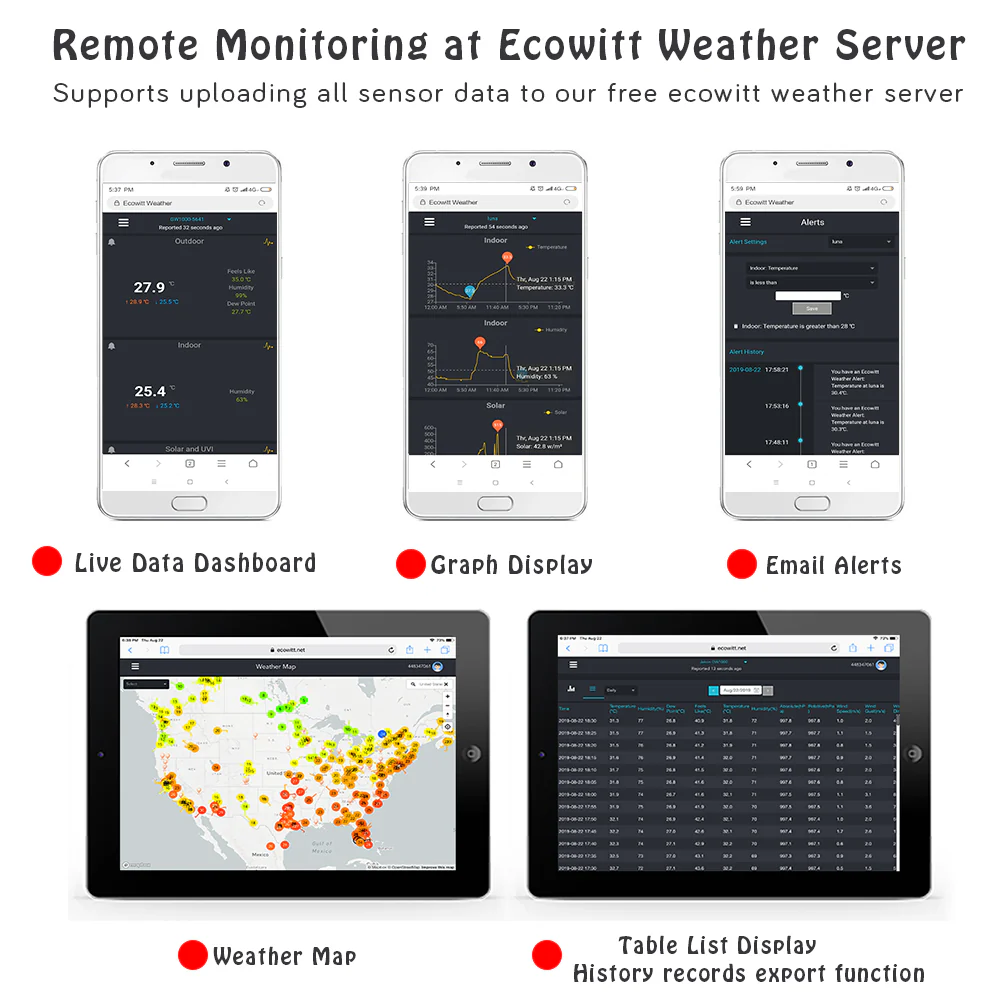

This data, along with the outdoor sensor data is uploaded to the FREE Ecowitt service via WiFi and is used to calculate rainfall rate, wind chill, dew point and heat index. All of this can be viewed on an iOS, Google App, or Ecowitt weather website in a browser.

You are not just limited to weather data on the Ecowitt weather site or App, you can share your data further afield with free access to The UK MetOffice WoW service, Weather Underground, WeatherCloud and your own web server.

Unlike some other stations, the Ecowitt HP2553 can be expanded with a variety of sensors, click here to view the latest Ecowitt sensor matrix.

All of these are available to view in the App, or online via Ecowitt.net and in the 3rd party services that support this sensor type.



Included

The Ecowitt HP2553 includes the following items:

• HP2550 TFT WiFi gateway console

• WN32AP Indoor temperature / humidity / barometric pressure sensor
• WS80 Ultrasonic 6-in-1 sensor, wind direction / speed, UV, light, temperature & humidity

• WH40H Rainfall sensor with heightened rain funnel, filter and bird spikes

• UK / EU power adapter
• Installation brackets for 25-50mm pole (pole not supplied as standard)
• Instruction manual for each component




Technical & Manual

The HP2553 consists of:

HP2550 7" Full Colour TFT Screen

• Separate WN32AP indoor sensor with LCD display
• Temperature
• Humidity
• Atmospheric pressure sensor
• Configure WiFi via console
• Configure additional sensors via console
• Publishes sensor data to Internet based weather services including
• Ecowitt weather server: ecowitt.net.
• WeatherUnderground.com
• WeatherCloud
• MetOffice WoW
• Only sensor data supported by each specific service will be uploaded.
• View historical records from your weather station with optional microSD card
• View all current sensor and historical records, and graphs on Ecowitt.net server. History records can also be exported in Excel format
• Wireless Range from external sensors: 300 feet / 100m (in open areas)
• 868MHz UK and European frequency

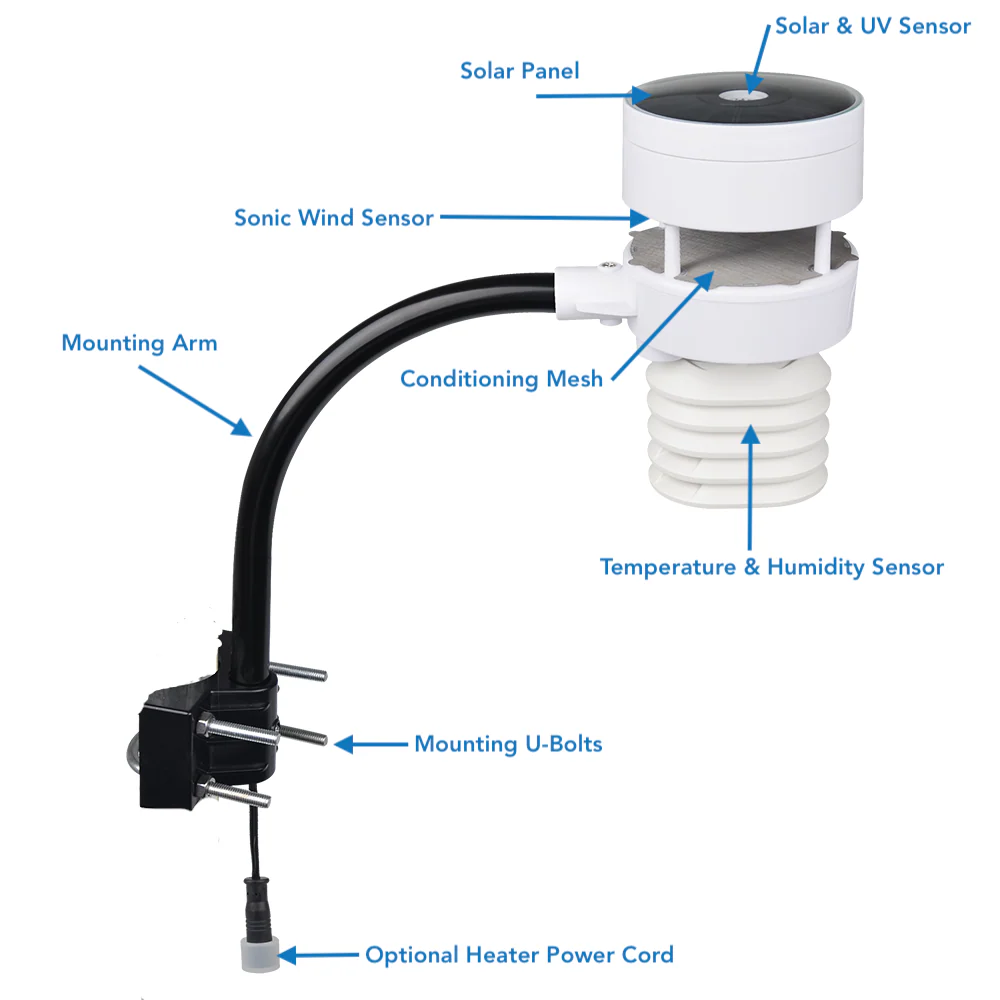

Ultra Sonic 6-in-1 sensor suite WS80

• Outdoor temperature and humidity
• Wind speed, gust speed, and wind direction
• Calculated wind chill, dew point and heat index display on the WS View App
• Solar light intensity
• UV index
• Solar powered with 2 x AA battery backup
• 868MHz UK and European frequency
• Mounting bracket for 30-50mm 1.25-2" pole (pole not supplied as standard)

Self emptying rain gauge WH40H

• Heightened rain collection cone
• Anti-bird perching spikes
• Rain filter
• Rainfall rate and totals for day, week, month, and year
• Transmission distance in open field: 100m(300 feet)
• Rainfall measuring range: 0--6000mm
• 868MHz UK and European frequency
• Sensor reporting interval: 49 seconds
• Installation bracket for 25-50mm pole (pole not supplied as standard)

The individual component manuals can be found in PDF form here:

• 6-in-1 WS80 Manual
• Rain Gauge WH40H Manual
• Indoor temperature, humidity & pressure sensor WN32P Manual
• Display Console HP2550_C Manual





Product Warranty

2 year warranty from date of purchase from January 2025, 1 year on purchases before this date - return to supplier. Batteries are excluded from warranties as they are classed as a consumable item.

See our terms and conditions for full details of our warranty details.
