Enhanced Omnidirectional Antenna for GW3000 Gateway

Looking to extend the reception range of the GW3000 Gateway to pick up those distance sensors over a 100 meters from the base then this is for you.

A high quality carbon-steel omnidirectional antenna with magnetic base and 3 meter cable to allow it to be located away from sources of interference offering over double the normal reception range of the standard antenna.

Tests in an open field environment increased the WH51 sensor reception from the 100 meters stated to 220 meters and the WS90 from 150 meters to 350 meters.

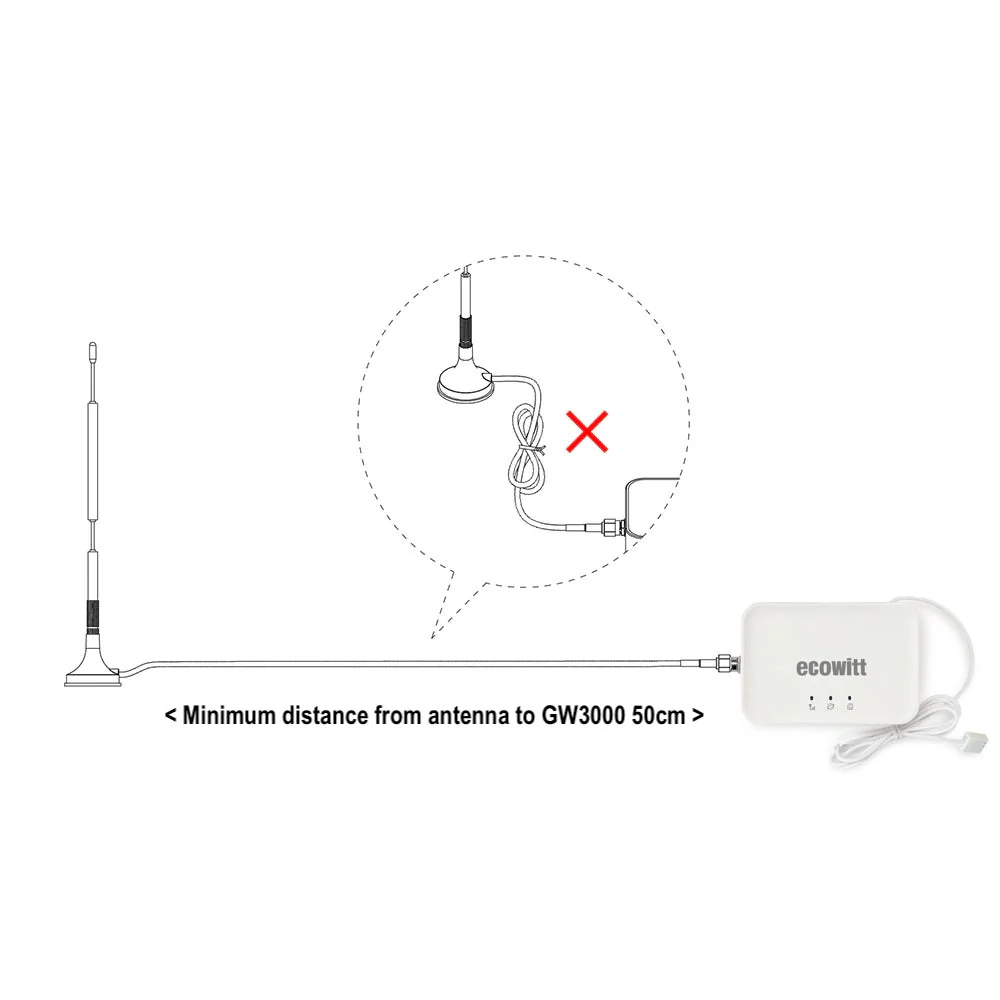

Important: Ensure that the antenna is a minimum of 50cm from the GW3000 gateway and your home WiFi router to avoid interference.

Features

• 360° omni-directional antenna with magnetic base
• Specifically designed for the GW3000 gateway
• Range up to 350 meters (open areas)

• 3M SMA cable
• Male/female SMA adapter included
• Optional 5M extension cable (≈25% signal loss)



Technical



Antenna Type	Magnetic Mount Antenna
Frequency Range	(868MHz)
Input Impedance	50Ω
V.S.W.R	< 2.2
Gain	0.9dBi
Polarization Type	Vertical
Power capacity	50W
Dimensions	110 × ⌀30mm
Connector Type	SMA-K (Female, inner thread & pinhole)
Cable Type	RG174
Cable Length	3M
Material	Carbon Steel
Weight	50g
RoHS Compliance	Yes
Operating Temperature	-45c ~ +85c
